HYU-1047

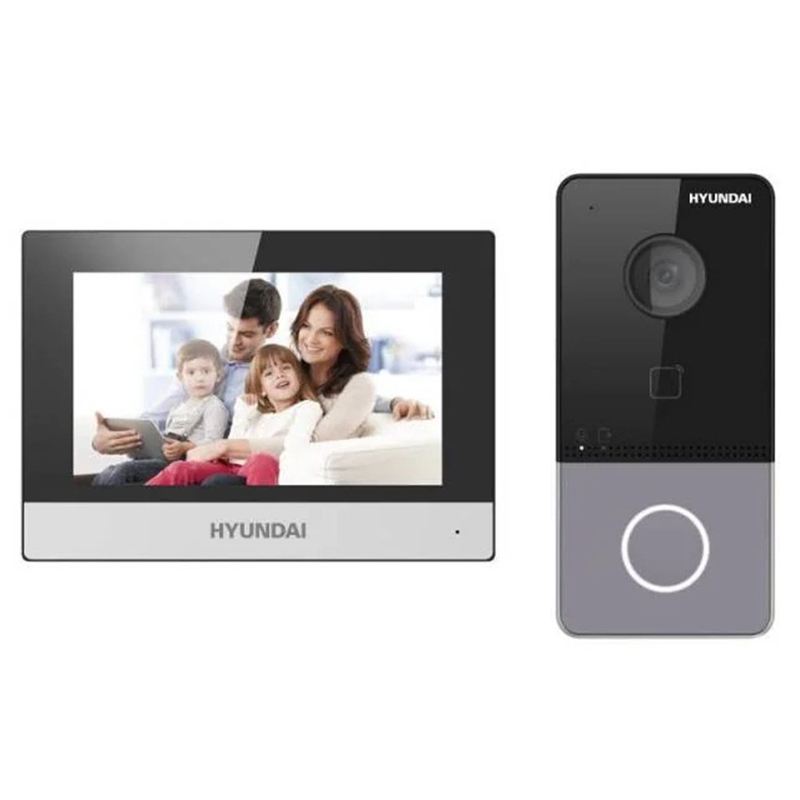

Video Door Entry KIT
1x IP Video Door Station
• 1 call button
• 2 MP camera with a viewing angle of 131°(H), 78°(V)
• H.264 video format
• Night vision with infrared supplement up to 3 metres
• Picture modes: BLC, true WDR, DNR
• Stream 1: 1080P at 30 fps, 720P at 25 fps
• Stream 2: D1 at 25 fps
• Videosensor
• Built-in omni-directional microphone and loudspeaker
• Noise suppression and echo cancellation
• Tamper tamper
• 4 alarm inputs
• 1 RS485 port
• 1 RJ45 port (10/100 Mbps)
• TCP/IP, RTSP protocols
• Power: 12V DC / PoE (802.3af)
• Power consumption: ≤10W
• Operating temperature from -40°C ~ +60°C
• Operating relative humidity 10% ~ 95% (non-condensing)
• IP65 degree of protection
• Dimensions: 65 (W) x 138 (H) x 27 mm
• Surface installation
1x WIFI IP monitor
• 7" TFT capacitive touch screen (1024x600)
• Built-in omni-directional microphone and loudspeaker
• G.711u audio compression
• Noise suppression and echo cancellation
• 8 alarm inputs / 2 alarm outputs
• 1 RS485 port
• 1 RJ45 port (10/100Mbps)
• TCP/IP, SIP, RTSP protocols
• Built-in WiFi 802.11 b/g/n
• 1 power port
• Power consumption: ≤6W
• Operating temperature from -10°C ~ +55°C
• Operating relative humidity 10% ~ 90% (non-condensing)
• Indoor installation environment
• Dimensions: 200(W)x140(H)x15.1mm
• Surface mounting
