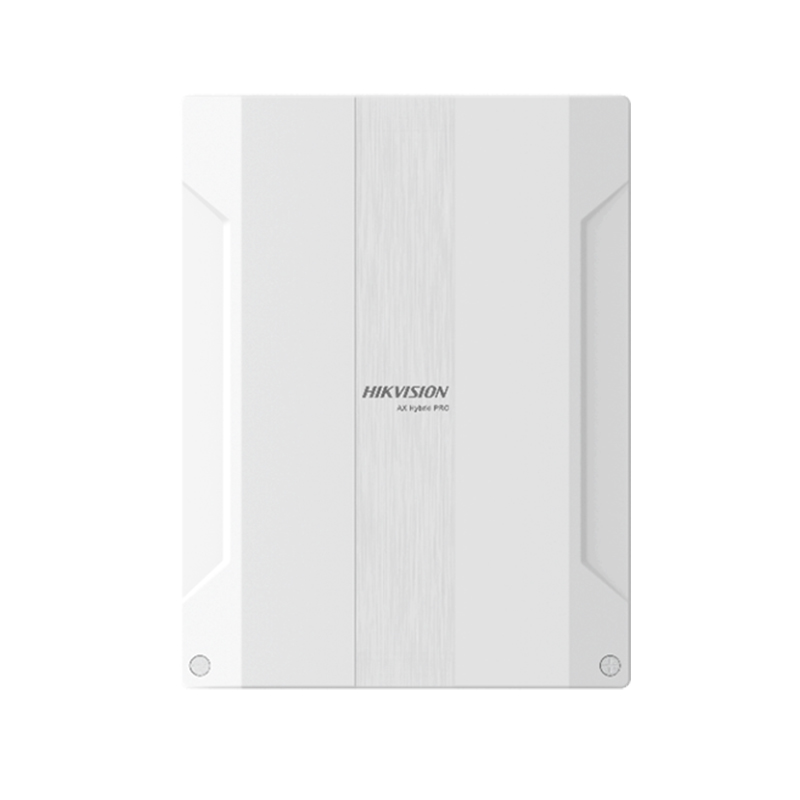

DS-PHA64-LP
AX Hybrid Pro Control Panel
• Hybrid system: 8 on-board zones and 56 wired/wireless zones expandable; 4 on-board outputs
(2 NO/NC outputs and 2 PGM outputs) and 60 wired/wireless outputs expandable
• Dual-path communication of alarm events and other signals over LAN, PSTN, Wi-Fi, GPRS
or 3G/4G utilizing a main and backup channel with configurable priority
• 4-ch onboard IP Camera video verification, supports video recording (5s pre-alarm + 2s post-alarm,
or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
• Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
• Pushes alarm notification via messages and Hik-Connect
• Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
• Supports 1 Speed-X BUS
